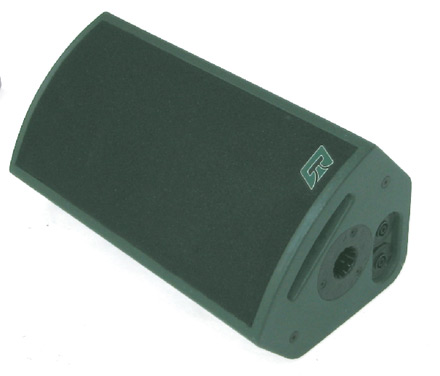

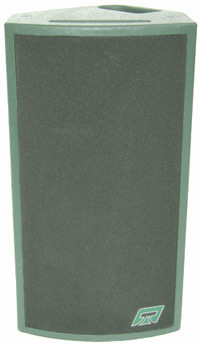

The CX81 is a multi purpose compact speaker designed for use in small, band, conference install and monitoring situations.

Its size makes it idealy suited for low visual impact work, its light weight makes it a breeze for “one man” jobs in the hire sector.

The asymetrical angled sides of the box give it the ability to be utilised a near or medium field monitor as well as being able to tuck neatly into a corner for installs.

With excellent frequency response from 80 to 20kHz it can be used alone for speech or is well suited to be used above the SB15 sub bass unit to give full frequency music reproduction.

The 400 W programme power and highly efficient HF driver mean this cabinet can produce a suprising amount of SPL. The coaxial configuration ensures great point source clarity in voice reproduction.

Built into the box are multiple hanging points, a four point “Powerdrive” compatible mounting plate for wallmounting and a “top hat” for pole mounting .

High build quality is essential of any speaker cabinet to ensure that the cabinet itself does not vibrate and soak up potential energy that could be delivered as intended out of the front of the box. The CX81 is no exception and is built entirely by hand in our workshop utilising 15mm birch ply and extensively routed glued and screwed throughout.


FEATURES
• highly efficient
• good sound presure levels
• superb clarity
• ultra compact size and weight
• stack stand fly ability
• hand crafted

APPLICATIONS:
• indoor / outdoor
• install / event / conference
• front of house / monitor
• club and venue

PERMANENT INSTALLATION IN:
• auditoriums
• theatres
• clubs and bars
• places of worship




TECHNICAL SPECIFICATION:
Type COAXIAL - MULTI PURPOSE PASSIVE
Frequency response 80HZ- 20kHz
Driver

8" + 1" (LF 200 mm, HF 25mm) Coaxial
LF 2" Interleaved Sandwich voice coil
Power rating 280W AES 400W Program
Recommended
amplifier		 400w @ 8ohm
Sensitivity LF 95dB HF 106dB
Maximum SPL 120dB
Nominal
impendence 		8 ohms
Dispersion 90 degrees
Crossover
points 		80Hz + 2kHz
Connectors 3 x Speakon NL4

DIMENSIONS:
Height 500mm
Width 300mm
Depth 285mm
Weight 12kg

CONTRUCTION:
15mm Birch Ply
Finished in textured water resistant
Noise Control Audio Green
powder coated protective grill

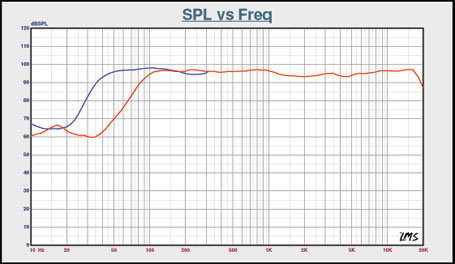

FREQUENCY RESPONSE VS SOUND PRESSURE LEVEL GUIDE:

CX81 POWERED BY FF204D CONTROLER + FF3.6 AMPLIFIER*
+ SB15 SUB POWERED BY FF6.0 AMPLIFIER*

* Taken using LMS at 1w/1m with 1/3 octave smoothing in full space.
Recordings with additional sub bass cabinets are taken as a system
and are spliced @ 300Hz.
All systems are recorded using recommended NCA amplifiers and control units.
