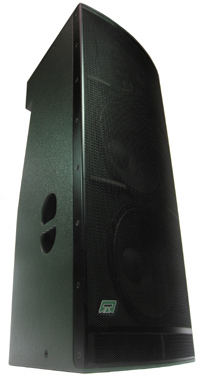

The big brother of the ASYM 3 series , this design adds an extra hi efficiency neodymium 15" bass driver to produce a box that can stand alone in medium size environments or be utilised with the VSB215 or VSB218 sub cabinets to extend its capabilities in larger situations. Its 3-way bi-amp configuration ensures the clarity in mid/high frequencies for which the ASYM3 series is known. The ASYM3D5 is capable of delivering 130 dB of sound with truly awe inspiring audio quality across the full frequency range.

The 8"+1" Point Source co-axial cluster utilized in the mid/hi is the part of the secret of this box. Its efficiency and clarity are second to none. Delivering load clear vocal ranges with ease.

Asymmetry in the internal structure restrict standing waves associated with booming and distortion in conventional designs.

High frequencies pass through a bespoke, 3rd generation "BUGLE"™ engineered to eliminate phase cancellation, further
enhancing the transparency of sound.

The ASYM3D5 is optimized for full range front of house use but in monitoring situations it also creates a no-compromise side fill or ultimate drum-fill cabinet.







FEATURES
 • next generation efficiency
• hi power/weight ratio
• superb clarity
• very high sound pressure levels
• stack/stand/fly ability
• hand crafted

APPLICATIONS:
• indoor/outdoor
• install,tour
• front of house
• club and venue
• side-fill stage monitor
• drum-fill stage monitor

PERMANENT INSALLATIONS IN :
• live music venues
• auditoriums
• theaters
• clubs and bars
• places of worship



TECHNICAL SPECIFICATION:

Type BI AMP - 2 WAY full range

  LF
M/HF
Driver 2 x 15"NEO 8"+1"
NEO
CO-AX
Power 2 x 1000W 300W
Usable
frequency range

40Hz-500Hz
+- 3dB

500Hz-
20Khz
+- 3dB
Crossover point 500Hz
Power handling 2000W AES 300W AES
Recommended
amplifier		 2000W + @4ohms 400W
@16ohms
Sensitivity @1w/1m 99dB
 102dB
Impedance 4 ohms 16ohms
Dispersion 90 degrees radial
Connectors
 2 x Neutrik NL4
Speakons
Maximum SPL 127db

DIMENSIONS
Height: 1210mm
Width (front): 525mm
Width (rear): 272mm
Depth: 520mm
Weight: 59kg

BUILD
Hand crafted
18mm Birch Ply
Rugged design
NCA green water resistant coating
Stack/stand/fly capable




TECHNICAL SPECIFICATION

datasheet PDF on request
