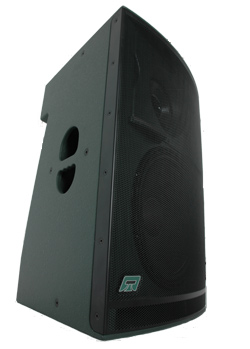

A 3 way bi-amp enclosure capable of delivering an incredible 127 dB of sound with truly awe inspiring audio quality across the full frequency range.

The ASYM 3 incorporates many of Noise Control Audio's design improvements all aimed at our shared goal of sonic perfection.
Point Source design is utilized, currently the best technology where sound clarity is the key.

Asymmetry in the internal design flattens the problematic standing waves associated with distortion in conventional designs.

The mid/hi drivers are a dual concentric cluster, also self contained in an asymmetrical enclosure and the in-house crossover is fine tuned to align the offset between the drivers.

High frequencies pass through a bespoke, 3rd generation "BUGLE"™ engineered to reduce phase cancellation and further
enhance the character of sound.






FEATURES
• next generation efficiency
• compact size and weight
• superb clarity
• very high sound pressure levels
• stack/stand/fly ability
• hand crafted

APPLICATIONS:
• indoor/outdoor
• install,tour
• front of house
• club and venue
• event and conferencing

PERMANENT INSALLATIONS IN :
• auditoriums
• theaters
• clubs and bars
• places of worship



TECHNICAL SPECIFICATION:

Type BI AMP - 3 WAY full range

  LF
M/HF
Driver 15"NEO 8"1"NEO CO-AX
Power 1000W 300W
Usable
frequency range

40Hz-500Hz
+- 3dB

500Hz-
20Khz
+- 3dB
Crossover point 500Hz
Power handling 1000W AES 300W AES
Recommended
amplifier		 1000W + @8ohms 300W
@16ohms
Sensitivity @1w/1m 96dB
 102dB
Impedance 8 ohms 16ohms
Dispersion 90 degrees
Connectors
 2 x Neutrik NL4
Speakons
Maximum SPL 127db

DIMENSIONS
Height: 800mm
Width (front): 525mm
Width (rear): 280mm
Depth: 520mm
Weight: 42kg

BUILD
Hand crafted
18mm Birch Ply
Rugged design
NCA green water resistant coating
Stack/stand/fly capable
