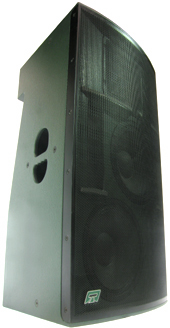

The ASYM 2D2 is a 2-way bi amp enclosure that incorporates 2 x 12" 450Watt neodymium mid/bass drivers and a 1.4" 80Watt neodymium compression driver.
It is a mid/high cabinet specifically designed to be useful in large installations that require high volume and audio quality at a reasonable cost. Hi-sensitivity in the drive units ensure efficiency that results in superb sound pressure levels for a box of its size.
As with all ASYM series, asymmetry in the construction of the cabinet significantly improves the linearity of the response curve produced, giving what appears to be a conventional cabinet a convincing lead in terms of sound quality.

The ASYM 2D2 has a more precise dispersion, 60 x 40 degrees (rotateable), than other ASYM models. This renders it highly adaptable for specific installation environments.

It has numerous flying points and can be mounted vertically or horizontally. The rugged construction combined with simplicity of components ensure the reliability and usability of this speaker.

Ideally the ASYM 2D2 would be used in conjunction with Noise Control Audio's VSB215 or VSB218 sub bass cabinets depending on the space available and depth of sub bass necessitated by the environment.







FEATURES
• superb quality/cost efficiency
• good size/weight ratio
• very clean response
• very high sound pressure levels
• stack/stand/fly ability
• hand crafted

APPLICATIONS:
• indoor/outdoor
• install,tour
• front of house
• club and venue
• event and conferencing

PERMANENT INSALLATIONS IN :
• live music venues
• auditoriums
• theaters
• clubs and bars
• places of worship



TECHNICAL SPECIFICATION:

Type BI AMP - 2 WAY full range

  LF
M/HF
Driver 2 x 12 "NEO 1.4"NEO
Power 2 x 450W 80W
Usable
frequency range

100Hz-1.3kHz
+- 3dB

1.3kHz-
20Khz
+- 3dB
Crossover point 1.3kHz
Power handling 900W AES 80W AES
Recommended
amplifier		 1000W + @4ohms 150W
@8ohms
Sensitivity @1w/1m 104dB
 110dB
Impedance 4 ohms 8ohms
Dispersion 60h x 40v degrees
Connectors
 2 x Neutrik NL4
Speakons
Maximum SPL 127db

DIMENSIONS
Height: 1000mm
Width (front): 525mm
Width (rear): 280mm
Depth: 520mm
Weight: 55kg

BUILD
Hand crafted
18mm Birch Ply
Rugged design
NCA green water resistant coating
Stack/stand/fly capable
