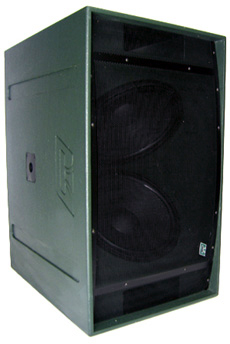

The
VSB215P is a compact, self powered, 2 x 15"
subwoofer with a superb clean sound, surprising
amount of punch and is very powerful in subsonic
frequencies.
Simple trouble free use is assured as the internal
UK built amplifier means no external processing
and matched amplifier to driver reliability.
The amplifier has a state of the art microprocessor
that constantly
monitors performance and safety preventing overheating
or quality loss even in the most testing conditions.
It is also deigned to have an additional VSB215
(unpowered) slaved to it with no loss of power. The "V" internal structure makes
this box extremely strong and minimises the standing
waves which cause booming in other designs.
Its low weight means it only takes one person
to load it in and out of
trucks and venues. It is also small enough to
be hidden under the
stage in smaller venues.
It is designed for use in clubs and hire situations
where its compact size and weight are key. There
is a "top hat" for sub/pole/mid-high
configurations and interlocking runners to facilitate
secure stacking when used in multiples.
With a usable frequency range from 35Hz up to
200Hz a single VSB215P can produce a maximum continuous
SPL of 130dB.
FEATURES: •
simple and reliable use
• compact size /weight
• clean powerful bass
• high SPL output
• built in wheels
• "top hat" mount
• hand crafted
APPLICATIONS: • indoor
• install /tour
• club and venue
• event and conferencing
PERMANENT
INSTALLATIONS IN: • auditoriums
• theatres
• clubs and bars
• places of worship
TECHNICAL
SPECIFICATION:
Type
ACTIVE
MEDIUM THROW SUBWOOFER
Frequency
response
35Hz-225Hz
+/- 3dB
Driver
2
x 15" NEO / 4" voice coil
Power
rating
2
x 1000W AES
Maximum SPL
130dB
Internal
Amplifier
Factory
presets
PO
80Hz LPF P1 120Hz LPF
Connections
Power 240/110 powercon
Line
Input xlr
Network
RS485
Updates
USB
Slave
speaker output - Speakon NL4
DIMENSIONS:
Height
530mm
Width
925mm
Depth
890mm
Weight
80Kg
CONTRUCTION:
Hand crafted in birch ply.
Durable green coating.
Protective grill and transport wheels.
